ZEST R-Tx Attachments
The ZEST R-Tx Advantage
Introducing the ZEST LOCATOR R-Tx Removable Attachment System, the next generation of LOCATOR®. Clinicians are rapidly discovering the practical advantages of upgrading to this new system, which offers progressive design features, a new stronger DuraTec® Coating, and enhanced system simplicity for both their practice and patients. Its innovative all-in-one packaging further streamlines the process, providing all necessary components—including the abutment, denture attachment housing with processing insert, all four retention inserts (Zero, Low, Medium, High), and a block out spacer—under a single part number.
LOCATOR R-Tx®: Corrects up to 60° of implant divergence, provides an easy self-aligning path of insertion, esthetic pink housings, and new Duratec abutment coating for longer life and greater wear resistance. 2.85mm vertical, 5.55mm Ø

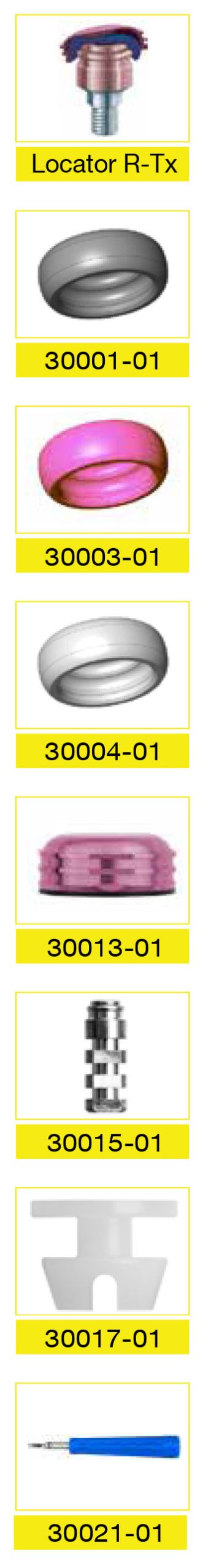

| NUMBER | PRODUCT NAME |
|---|---|
| 30001-01 | R-Tx® Zero Retention Insert, Grey (4-Pack) |
| 30002-01 | R-Tx® Low Retention Insert, Blue (4-Pack) |
| 30003-01 | R-Tx® Medium Retention Insert, Pink (4-Pack) |
| 30004-01 | R-Tx® High Retention Insert, Clear (4-Pack) |
| 30027-01 | R-Tx® Low Retention, Limited Range, Aqua Blue (4-Pack) |
| 30028-01 | R-Tx® Medium Retention, Limited Range, Purple (4-Pack) |
| 30029-01 | R-Tx® High Retention, Limited Range, Yellow (4-Pack) |
| 30030-01 | R-Tx® Attachment System, Mixed Retention Ltd Range Insert (2-Pack) |
| 30012-01 | R-Tx® Processing Insert (4-Pack) |
| 30013-01 | R-Tx® Denture Attachment Processing Assembly (4-Pack) |
| 30014-01 | R-Tx® 3.35mm Abutment Analog (4-Pack) R-Tx® analogs for use with narrow diameter implants |
| 30015-01 | R-Tx® 4mm Abutment Analog (4-Pack) R-Tx® analogs for use with regular platform implants |
| 30016-01 | R-Tx® 5mm Abutment Analog (4-Pack) R-Tx® analogs for use with wide diameter implants |
| 30017-01 | R-Tx® Impression Coping (4-Pack) |
| 30018-01 | R-Tx® Processing Spacer (4-Pack) |
| 30021-01 | R-Tx® Retention Insert Tool |
| 8514 | R-Tx® Block Out Spacer (20-Pack) |
| 9665 | R-Tx® Patient Education Model |
ZEST R-Tx Abutments
| IMPLANT ABUTMENT DESCRIPTION | ABUTMENT TISSUE CUFF HEIGHT | |||||||
|---|---|---|---|---|---|---|---|---|
| 0.0MM | 1.0MM | 2.0MM | 3.0MM | 4.0MM | 5.0MM | 6.0MM | ||
| BIOHORIZONS | ||||||||
| Internal 3.0mmD | 30600-01 | 30600-02 | 30600-03 | 30600-04 | 30600-05 | 30600-06 | ||
| Internal 3.5mm/3.8mmD | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Internal 4.0mm/4.5mm/4.6mmD | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Internal 5.7mm/5.8mmD | 30202-01 | 30202-02 | 30202-03 | 30202-04 | 30202-05 | 30202-06 | ||
| BIOMET (3i) | ||||||||
| Certain 3.4mmD | 30300-01 | 30300-02 | 30300-03 | 30300-04 | 30300-05 | 30300-06 | ||
| Certain 4.1mmD | 30301-01 | 30301-02 | 30301-03 | 30301-04 | 30301-05 | 30301-06 | ||
| MicroMiniPlant 3.4mmD (Ex Hex) | 30305-01 | 30305-02 | 30305-03 | 30305-04 | 30305-05 | 30305-06 | ||
| MiniPlant 3.75mmD (Ex Hex) | 30306-01 | 30306-02 | 30306-03 | 30306-04 | 30306-05 | 30306-06 | ||
| Cylindrical 4.0mmD (Ex Hex) | 30306-01 | 30306-02 | 30306-03 | 30306-04 | 30306-05 | 30306-06 | ||
| DENTSPLY / FRIADENT | ||||||||
| Ankylos C/X (Conical Connection) | 30715-01 | 30715-02 | 30715-03 | 30715-04 | 30715-05 | 30715-06 | ||
| EV 3.6mmD | 30700-01 | 30700-02 | 30700-03 | 30700-04 | 30700-05 | 30700-06 | ||
| EV 4.2mmD | 30701-01 | 30701-02 | 30701-03 | 30701-04 | 30701-05 | 30701-06 | ||
| EV 4.8mmD | 30702-01 | 30702-02 | 30702-03 | 30702-04 | 30702-05 | 30702-06 | ||
| TX 3.5mm/4.0mmD | 30706-01 | 30706-02 | 30706-03 | 30706-04 | 30706-05 | 30706-06 | ||
| 4.5mm/5.0mmD | 30707-01 | 30707-02 | 30707-03 | 30707-04 | 30707-05 | 30707-06 | ||
| Frialit-2 / Xive 3.4mmD | 30711-01 | 30711-02 | 30711-03 | 30711-04 | 30711-05 | 30711-06 | ||
| Frialit-2 / Xive 3.8mmD | 30712-01 | 30712-02 | 30712-03 | 30712-04 | 30712-05 | 30712-06 | ||
| Frialit-2 / Xive 4.5mmD | 30713-01 | 30713-02 | 30713-03 | 30713-04 | 30713-05 | 30713-06 | ||
| Frialit-2 / Xive 5.5mmD | 30714-01 | 30714-02 | 30714-03 | 30714-04 | 30714-05 | 30714-06 | ||
| IMPLANT DIRECT | ||||||||
| Self Tapping 3.5mmD (Ex Hex) | 30306-01 | 30306-02 | 30306-03 | 30306-04 | 30306-05 | 30306-06 | ||
| Universal 3.4mm/4.0mmD (Ex Hex) | 30306-01 | 30306-02 | 30306-03 | 30306-04 | 30306-05 | 30306-06 | ||
| Legacy 3.5mmD (Internal Hex) | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Legacy 4.5mmD (Internal Hex) | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Legacy 5.7mmD (Internal Hex) | 30202-01 | 30202-02 | 30202-03 | 30202-04 | 30202-05 | 30202-06 | ||
| RePlus / RePlant / ReActive 3.5mmD (Trilobe NP) | 30500-00 | 30500-01 | 30500-02 | 30500-03 | 30500-04 | 30500-05 | 30500-06 | |
| RePlus / RePlant / ReActive 4.3mmD (Trilobe RP) | 30501-00 | 30501-01 | 30501-02 | 30501-03 | 30501-04 | 30501-05 | 30501-06 | |
| RePlus / RePlant / ReActive 5.0mmD (Trilobe WP) | 30502-01 | 30502-02 | 30502-03 | 30502-04 | 30502-05 | |||
| SwishTapered / SwishPlus 4.8mmD | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| IMPLANT ABUTMENT DESCRIPTION | ABUTMENT TISSUE CUFF HEIGHT | |||||||
|---|---|---|---|---|---|---|---|---|
| 0.0MM | 1.0MM | 2.0MM | 3.0MM | 4.0MM | 5.0MM | 6.0MM | ||
| MEGAGEN / INTEGRATED DENTAL SYSTEMS | ||||||||
| AnyRidge 3.5mmD (Internal Connection) | 32201-01 | 32201-02 | 32201-03 | 32201-04 | 32201-05 | 32201-06 | ||
| MIS-MEDICAL IMPLANT SYSTEM | ||||||||
| Internal Hex 3.75mm/4.2mmD (SP) | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Internal Hex 5.0mmD (WP) | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| External SP (Ex Hex) | 30306-01 | 30306-02 | 30306-03 | 30306-04 | 30306-05 | 30306-06 | ||
| Mistral Internal Octagon (Stage One) | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| NEODENT | ||||||||
| Cone Morse | 32301-01 | 32301-02 | 32301-03 | 32301-04 | 32301-05 | 32301-06 | ||
| Grand Morse | 32700-01 | 32700-02 | 32700-03 | 32700-04 | 32700-05 | 32700-06 | ||
| NOBEL BIOCARE / BRANEMARK / STERIOSS | ||||||||
| Active / Conical Connection NP | 30506-01 | 30506-02 | 30506-03 | 30506-04 | 30506-05 | 30506-06 | ||
| Active / Conical Connection RP | 30507-01 | 30507-02 | 30507-03 | 30507-04 | 30507-05 | 30507-06 | ||
| Active / Conical Connection WP | 30508-01 | 30508-02 | 30508-03 | 30508-04 | 30508-05 | 30508-06 | ||
| Replace Select NP (3.5mmD, Trilobe) | 30500-00 | 30500-01 | 30500-02 | 30500-03 | 30500-04 | 30500-05 | 30500-06 | |
| Replace Select RP (4.3mmD, Trilobe) | 30501-00 | 30501-01 | 30501-02 | 30501-03 | 30501-04 | 30501-05 | 30501-06 | |
| Replace Select WP (5.0mmD, Trilobe) | 30502-01 | 30502-02 | 30502-03 | 30502-04 | 30502-05 | 30502-06 | ||
| Branemark NP (3.3mmD, Ex Hex) | 30510-01 | 30510-02 | 30510-03 | 30510-04 | 30510-05 | 30510-06 | ||
| Branemark RP (3.75mm/4.0mm/5.0mmD, Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Branemark WP (5.0mmD, Ex Hex) | 30512-01 | 30512-02 | 30512-03 | 30512-04 | 30512-05 | 30512-06 | ||
| Nobel Speedy NP (3.5mmD, Ex Hex) | 30510-01 | 30510-02 | 30510-03 | 30510-04 | 30510-05 | 30510-06 | ||
| Nobel Speedy RP (4.3mmD, Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Replace Ex Hex NP (3.5mmD) | 30510-01 | 30510-02 | 30510-03 | 30510-04 | 30510-05 | 30510-06 | ||
| Replace Ex Hex RP (4.3mmD) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Replace Ex Hex WP (5.0mmD) | 30512-01 | 30512-02 | 30512-03 | 30512-04 | 30512-05 | 30512-06 | ||
| Hex-Lock (HL) 3.8mm/4.5mmD (Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| OSSTEM / HIOSSEN USA | ||||||||
| SS Internal / HS Regular 4.8mmD | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| SS Internal Octagon RP |
31606-01
1.5mm
|
31606-02 | 31606-03 | 31606-04 | 31606-05 | 31606-06 | ||
| US Mini / 3.3mm / 3.5mmD (Ex Hex) | 30510-01 | 30510-02 | 30510-03 | 30510-04 | 30510-05 | 30510-06 | ||
| US Regular/HU Regular 3.75mm/4.0mmD (Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| ET Mini | 31600-01 | 31600-02 | 31600-03 | 31600-04 | 31600-05 | 31600-06 | ||
| ET Regular | 31601-01 | 31601-02 | 31601-03 | 31601-04 | 31601-05 | 31601-06 | ||
| SSI/III 4.5/4.8 | 31606-01 | 31606-02 | 31606-03 | 31606-04 | 31606-05 | 31606-06 | ||
| IMPLANT ABUTMENT DESCRIPTION | ABUTMENT TISSUE CUFF HEIGHT | |||||||
|---|---|---|---|---|---|---|---|---|
| 0.0MM | 1.0MM | 2.0MM | 3.0MM | 4.0MM | 5.0MM | 6.0MM | ||
| STRAUMANN | ||||||||
| Tissue Level 3.5mmD (NNC) | 30405-01 | 30405-02 | 30405-03 | 30405-04 | 30405-05 | 30405-06 | ||
| Tissue Level 4.8mmD (RN) | 30406-01 | 30406-02 | 30406-03 | 30406-04 | 30406-05 | 30406-06 | ||
| Tissue Level 6.5mmD (WN) |
30407-01
1.5mm
|
30407-02 | 30407-03 | 30407-04 | 30407-05 | 30407-06 | ||
| Bone Level 3.5mmD (NC) | 30401-01 | 30401-02 | 30401-03 | 30401-04 | 30401-05 | 30401-06 | ||
| Bone Level 4.1mmD (RC) | 30402-01 | 30402-02 | 30402-03 | 30402-04 | 30402-05 | 30402-06 | ||
| Endopore 4.1mmD (0.7mm Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Endopore 4.1mm/5.0mmD (One Stage) | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| Entegra 3.25mm/4.0mmD (0.7mm Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Pro Series XRT Bone Level 4.8mmD | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| Pro Series Tissue Level (TL) 4.1mm/4.8mmD | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| Hex Plus 4.1mmD | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| BLX Regular Base (RB) & Wide Base (WB) | 30410-01 | 30410-02 | 30410-03 | 30410-04 | 30410-05 | 30410-06 | ||
| SYBRON / INNOVA | ||||||||
| Endopore 4.1mmD (0.7mm Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Endopore 4.1mm/5.0mmD (One Stage) | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| Entegra 3.25mm/4.0mmD (0.7mm Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| ZIMMER / CENTERPULSE / CALCITEK / PARAGON | ||||||||
| Screw-Vent / Tapered Screw Vent 3.3mm/3.7mm/4.1mmD (3.5mm Diameter) |
30200-00
0.5mm
|
30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Screw-Vent / Tapered Screw Vent 4.7mmD (4.5mm Diameter) |
30201-00
0.5mm
|
30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Screw-Vent / Tapered Screw Vent 6.0mmD (5.7mm Diameter) | 30202-01 | 30202-02 | 30202-03 | 30202-04 | 30202-05 | 30202-06 | ||
| Calcitek: Spline 4.1mm (Ex Hex) | 30207-01 | 30207-02 | 30207-03 | 30207-04 | 30207-05 | 30207-06 | ||
| Calcitek: Swede-Vent 4.0mmD (Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Calcitek: Swede-Vent TL (External Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Calcitek: Taperlock (Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Calcitek: Threadlock 4.0mm (Ex Hex) | 30511-01 | 30511-02 | 30511-03 | 30511-04 | 30511-05 | 30511-06 | ||
| Paragon: Bio-Vent 3.5mm (3.5mm Platform Diameter) | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Paragon: Bio-Vent 4.5mm (4.5mm Platform Diameter) | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Paragon: Core-Vent 3.5mm (3.5mm Platform Diameter) | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Paragon: Core-Vent 5.0mm (4.5mm Platform Diameter) | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Paragon: Micro-Vent 3.25mm (3.5mm Platform Diameter) | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Paragon: Micro-Vent 4.25mm (4.5mm Platform Diameter) | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Paragon: Swiss Plus 4.8mm Diameter | 31302-01 | 31302-02 | 31302-03 | 31302-04 | 31302-05 | 31302-06 | ||
| Internal 3.5mm/3.8mmD | 30200-00 | 30200-01 | 30200-02 | 30200-03 | 30200-04 | 30200-05 | 30200-06 | |
| Internal 4.0mm/4.5mm/4.6mmD | 30201-00 | 30201-01 | 30201-02 | 30201-03 | 30201-04 | 30201-05 | 30201-06 | |
| Internal 5.7mm/5.8mmD | 30202-01 | 30202-02 | 30202-03 | 30202-04 | 30202-05 | 30202-06 | ||
The LOCATOR R-Tx delivers a better, simpler, and stronger solution, offering:
- Harder, More Wear-Resistant DuraTec® Coating: For enhanced durability and longevity.
- Increased Pivot Technology: Allows treatment of up to 60° of divergence between implants.
- Easier Alignment & Seating: Simplifies prosthesis insertion for both clinicians and patients.
- .050”/1.25mm Hex Drive Mechanism: Ensures compatibility with standard tools.
- Simple All-In-One Packaging: Streamlines inventory and case preparation.
- Same Restorative Techniques as Legacy LOCATOR: Ensures a familiar and efficient workflow.
- Enhanced Patient Satisfaction: Through improved performance and simplicity.
